What damages the clutch in a car?

Does stalling a car damage the clutch? A Comprehensive Guide to Solve Your Clutch Issues

Symptoms Of A Bad Oil Pump

The clutch is a small mechanical component in your car that delivers power from the engine to the wheels. Its function is pretty simple. So, does stalling a car damage the clutch? Simply speaking, yes. Stalling a car damages the clutch that includes loosening other car parts linked to it. In this guide, we will walk you through all you need to know about your car’s clutch. You will also find answers to the basic question such as: What is the clutch and what does it do? What are the effects of stalled cars on the components of my vehicle? How do I fix clutch problems?

Auto Repairs Are EXPENSIVE

What does the clutch do? The clutch may be a small component but it is a key part of the engine in your vehicle. The clutch is the one capable of disengaging and engaging the engine from the transmission system. Without the clutch, disengaging and engaging the engine from the transmission will become rough. The clutch provides for smooth operation between the transmission and the engine. The clutch consists of the following parts: the flywheel, pilot bearing, clutch plate, also known as a disc plate, pressure plate, clutch cover, release levers, and clutch shaft. These car parts may be affected when your car is stalling. It is also important to note that clutch problems could also cause stalling problems with your car. Whatever becomes problematic first, whether is the clutch or the vehicle itself, driving with a damaged clutch is unsafe.

What happens to the clutch when you stall?

Remember, stalling a car damages the clutch. How does this happen? When a vehicle continually stalls, it increases stress on the components. Because of this, old parts may loosen and give out. In this case, the clutch handles a lot of strain and the clutch lining wears out as well. A damaged clutch does little to help you retain control over your vehicle when you try to stop or slow down your driving.

If you notice that your car has been stalling frequently, observe what happens to the clutch in its biting point. You may also try putting a bit of pressure on the clutch when you feel that your car is about to stall. However, do not put too much strain on the clutch. Continuous stress distributed to the clutch when the car stalls will eventually deteriorate the clutch. If your clutch is damaged already, you may want to look into a new one for replacement. The price of a car clutch varies depending on the make and model of your automobile. The typical car clutch replacement costs between 500 to 1,200 dollars. If you are driving a 4WD or an exotic car, clutch replacement can go from 900 to 2,000 dollars.

You may wonder, “Is it worth it to have my car’s clutch repaired?” Because the cost of replacement and repair of the clutch may seem too high for a small component, many try to fix the problem on their own. However, it will be more dangerous for you if you do not seek professional help in fixing or replacing the car clutch.

What causes a car to stall?

Stalling a car damages the clutch. Therefore, to prevent the car clutch from going bad, you must deal with the stalling problem first. There are various reasons why vehicles begin to continuously stall. Perhaps there is a problem within the engine, or a component stopped working. At times, the air or fuel supplied to your vehicle may not be enough; thus creating mechanical issues. Stalling may happen for a short while or as you drive. Here are the most common causes of a stalled car.

  1. Your car is running on an empty fuel

Keep an eye on your car’s dashboard. If you notice that your low fuel warning light is on, you need to fill up the fuel tank. You may experience stalling when your car is running with an empty fuel tank. Cars stall if there is not enough fuel mixture.

When the engine does not receive enough fuel to run, stalling happens. Insufficient fuel delivered to the engine might be due to a defective fuel pump. When your car has a bad fuel pump, you will be unable to restart your car. You might ask, “but does stalling a car damage the clutch?”. “Does a bad fuel pump affect the engine system where the clutch is located?” Yes.

  1. Your car suffers from alternator problems

A bad alternator affects many car components. If your alternator is broken, your car will not be able to work properly and is as good as broken too. Once the alternator fails, your car will stall more often, and stalling a car damages the clutch. If you find yourself facing alternator problems, you may have to spend a lot to have it fixed. Keep your car maintained regularly to save yourself from spending a lot on alternator repairs. As for the symptoms of a bad alternator, you may notice your car’s battery is not charging and electrical functions in your car are not working properly.

  1. Your car’s air filter and coolant are not well-maintained
What color is hardest to paint a car?

Airflow is interrupted when the air filter is clogged with dirt. When this happens, your car may stall more often than usual and over long periods. A faulty coolant sensor can also contribute to your car having stalling issues. When the coolant is damaged, it may send incorrect readings that result in your car stalling. Aside from a failing coolant, does stalling a car damage the clutch. Of course.

  1. Your distributor cap is susceptible to corrosion

Stalling a car damages the clutch especially when corrosion is present in one of the car parts. If your vehicle’s distributor cap, which delivers voltage to the plugs, is corroded, you may experience abrupt stops during acceleration.

Keep in mind that stalling a car damages the clutch this is why you must troubleshoot the problem with your vehicle. It is dangerous to drive a car with a faulted clutch. If you discover any of these causes to a stalled car, have your vehicle checked immediately.

How do you fix a stalling car?

Since stalling a car damages the clutch, it is a practical action to try to fix the stalled vehicle. Now that you know the possible causes of your car stalling, it will be easier for you to identify what the problem is. If you detected that the problem is caused by a bad battery or a failing alternator, you may need to move forward for replacement. Below is a step-by-step process you can do to fix your car when it stalls.

It is quite nerve-wracking when your car stalls while you are driving. The worst-case scenario when this happens is a probable car crash. When your car suddenly stalls as you drive, move your vehicle to the side immediately once you regain control. Signal other drivers about your situation by turning your hazard lights on.

Shift to neutral or shift to park depending on the car that you are driving. It may take several tries before your vehicle starts. Keep the engine on a start for a while before you drive again. If your car won’t start, call for towing service to get your automobile checked.

If you can drive safely after your vehicle stalls, make sure to get the problem attended to. Ask a professional mechanic to look into the issue.

Stalling a car damages the clutch therefore it is a big issue. The steps mentioned above are simple but can keep you, and other car drivers, safe. Do not ignore the signs of a stalled car or a damaged clutch.

How do you release a clutch without stalling?

You can release the clutch without stalling by diverting the pressure to the accelerator. You might already be aware that stalling a car damages the clutch but handling of the clutch can also have direct effects on how it functions. Make sure that you do not abruptly release your clutch but slowly emancipate it to avoid stalling. Though stalling is a natural occurrence or practice for manual car drivers, stalling must be done as little as possible when driving. Stalling a car damages the clutch once it is repeated 8 to 10 times per day.

Changing gears can also aid you to smoothly release your clutch. You must release your foot from the clutch and alternately press the accelerator pedal. Stalling a car damages the clutch and one of the best ways to avoid stalling is to turn over the pressure to the accelerator only when you have shifted to another gear.

Always remember to depress your clutch. You can also try changing to neutral before coming to a stop. Doing so will give the clutch some time to rest. Changing to neutral when your car is about to stop or park can also help your car’s clutch release smoothly. The key here is to avoid unnecessary stalling that leads to the early wear and tear of the clutch.

Can you damage the clutch?

You might still be conflicted with the thought “Does stalling a car damage the clutch?” The answer is a resounding, Yes! While there may be other factors that are at play when it comes to clutch damage, stalling is considered to be one of the major causes. Generally speaking, most clutches can be stiff and some are quite sensitive. It depends on the type of car you are driving. Nevertheless, clutches, like any other part of your vehicle, are subject to damage. Here is a list of major problems with car clutches to give you a better idea of how to identify the cause of your clutch damage.

  1. You have stretched or broken clutch cables

Having stretched or broken clutch cables can be troublesome and not to mention dangerous. This damage can equate to having a broken clutch itself since the consequences will be the same. The clutch of your car is a fixed compartment so once its cables are stretched there is a great possibility that you will experience slipping gears while you are driving. To no surprise, stalling a car damages the clutch this way as well.

  1. The throw-out bearings are already worn-out
Does driving 55 save gas?

The throw-out bearing of your car is the one responsible for managing the interaction between the internal and external surfaces around your car. Meaning, it acts as a regulator for the motion of your car. Still, the involvement of stalling a car damages the clutch by the means of the throw-out bearings. When this part of the clutch system wears out, the car will produce odd noises and car control will be compromised.

The cylinder of the car is more related to the engine of the car than the clutch. Though this may be the case, it does not mean that leaking cylinders cannot contribute to clutch failure. As previously mentioned, stalling a car damages the clutch in a variety of ways and so does leaking cylinders. The relationship between the two compartments, the master cylinder, and the clutch comes into play when you press on the pedal. Your clutch cannot work or be disengaged without the help of the master clutch cylinder since the cylinder contains fluid that carries enough weight to release the clutch. When stalling a car damages the clutch, you can also picture in the scenario, the damage your clutch suffers from a leak in its master clutch cylinder.

  1. Your car’s pressure plate is damaged

Your car’s pressure plate mainly functions as a pressure applicator to the clutch disk as it delivers torque to the transmission of your car. The moment your pressure plate takes damage is the time the clutch starts to deteriorate. If stalling a car damages the transmission, then a broken pressure plate damages the whole clutch system.

All in all, stalling a car damages the clutch in a variety of ways that most people might not be aware of. It is natural for drivers to stall every once in a while. However, this comprehensive guide teaches you that excessive stalling can lead to issues with your car such as a damaged clutch.

Car clutch problems

The clutch system is a crucial part of any car with a manual transmission. But it can wear out over time, causing issues which might result in difficulties when driving your vehicle, or even a breakdown.

There are sometimes signs that your manual clutch is wearing out, including a squeaking or grumbling noise when the clutch pedal is pressed, difficulties shifting gear and a «slipping» clutch.

Learn more about the signs of clutch failure below, along with information about how a car clutch works.

In this article

  • What’s a clutch in a car?
  • How does the clutch work?
  • What are the signs of clutch failure?
  • What should I do if the clutch suddenly fails?
  • How to fix a clutch
  • How long do clutches last?
  • Do automatic cars have a clutch?
  • Do electric cars have a clutch?

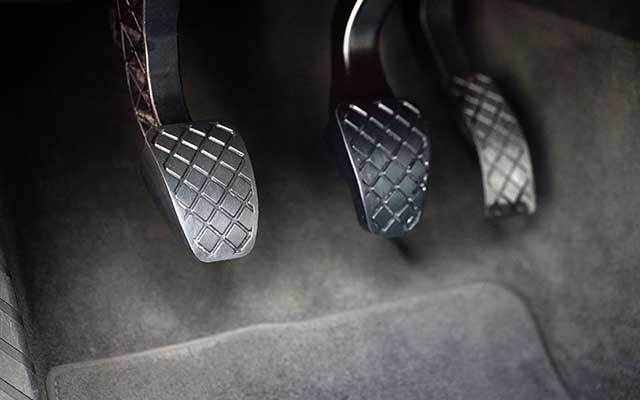

Car clutch pedal

What’s a clutch in a car?

In the most basic sense, a clutch is a mechanical device that connects and disconnects 2 rotating plates, allowing movement energy to be transferred from one part of a machine to another.

In a vehicle with an internal combustion engine (ICE) and a gearbox, a clutch separates the engine from the transmission, which, in turn, allows gear changes and for the car to come to a complete stop while the engine is running.

Most clutches are operated by a foot pedal, but some are automatic with no pedal, and these are usually referred to as semi-automatics.

We provide 24/7 roadside assistance.

What are the different types of clutch?

There are different types of clutch system that can be present in vehicles. Some of the main ones are as follows:

  • Single plate friction – this is the most common type of clutch in a manual car.
  • Wet multiplate friction – these are usually found in motorcycles and semi-automatic cars.
  • Dry multiplate friction – these are usually fitted in high performance motorcycles.
  • Centrifugal and semi-centrifugal – these are found in mopeds and petrol-powered machines like mowers and chainsaws.
  • Fluid – there are many types, but torque converters are the most common in cars and are only fitted in automatics.

The different clutch systems have similar functions, but there are differences in the mechanics and how they operate.

It’s worth being aware of what type of clutch system is in your vehicle, as it may mean different maintenance is required.

For example, a single-plate or multi-plate friction clutch operates by using springs to engage and disengage different plates, connecting and disconnecting the engine and transmission.

But they can also be operated by a cable, hydraulic system or electronically.

Torque converters have fewer parts, meaning there’s generally less chance of something going wrong.

But the transmission fluid that operates them and the rest of the automatic gearbox deteriorates over time and will need to be changed. This is done as part of a transmission service.

How does a car clutch work in a manual car?

There are different clutch systems that can be present in manual vehicles, so they don’t all work in the same way but the purpose of them is generally the same.

Do both cars need to be running to jumpstart?

Most manual cars have a single plate friction clutch. This is made up of several components:

  • Flywheel – attached to the engine of the vehicle.
  • Pressure plate – connected to the manual gearbox and spring loaded to produce pressure when engaged.
  • Friction plate – sits between the flywheel and the pressure plate and connects the two when the pressure plate is engaged.
  • Release bearing – operates the springs on the pressure plate and hydraulically operated systems, often incorporating the slave hydraulic cylinder.
  • Master cylinder – connects to the clutch pedal and provides the pressure to the slave cylinder via a hydraulic pipe.

On cable systems, the hydraulic components are replaced by a cable that connects the pedal to a lever, which acts on the release bearing in the same way as the slave cylinder.

Cable clutches are usually found on smaller vehicles and motorcycles.

In manual cars and vans, the clutch pedal is located to the left of the brake and accelerator pedals.

When your foot is off the clutch pedal, the clutch is engaged so the engine and transmission are connected, and spin at the same speed.

When your foot is pressed down on the clutch pedal, the clutch is disengaged so the engine and gearbox are disconnected, which allows you to change gears or brake and stop the car without turning the engine off.

Not all manual cars have a clutch pedal. Semi-automatics and vehicles with a sequential or automated manual gearbox (SMG/AMG) don’t have one – instead the clutch is operated electro-hydraulically by a computer.

In manual motorbikes, there’s generally a hand-operated clutch lever allowing the rider to change gear.

What are the signs of manual clutch failure?

Here are some of the main signs your clutch is starting to fail.

  1. When you press the clutch pedal, it’s spongy, sticking, vibrating or loose.
  2. There’s a squeaking or grumbling noise when the clutch pedal is pressed.
  3. You’re able to rev the engine but notice that it’s difficult to accelerate.
  4. You’re having difficulty shifting gear.
  5. The clutch fluid level suddenly drops or you notice a puddle of clutch fluid under the car or around the gearbox (in a vehicle with a hydraulic clutch system) – this could mean there’s a leak in the system and the clutch won’t work properly.
  6. The clutch “slips”, causing a brief loss in acceleration, usually as you release the pedal after changing gear.

If the main symptom you’ve noticed is difficulty changing gears, then this could also be due to a faulty gearbox.

To check whether the clutch or the gearbox is to blame, turn off the engine and try changing gears. If you can then the issue often lies with the clutch.

A squeaking or grumbling noise usually indicates that the release bearing is worn out and will need replacing. This comes as part of a replacement clutch and isn’t something that should be changed separately

If you notice one of the above early warning signs of clutch failure while driving, you should take your car to a garage to get the issue resolved before it causes you to break down.

We’ll get you back on the road.

What’s a “slipping” clutch?

A slipping clutch happens when the material on the friction plate starts to wear out.

This means the pressure plate will move at a different speed to the flywheel, so the vehicle can’t send full engine power through the gearbox to the road wheels.

If your clutch is slipping:

  • When you change gear and take your foot off the clutch, you’ll notice you can’t accelerate as quickly as usual.
  • There may be a burning smell in the car.

A slipping clutch is a common sign that the clutch is worn out.

What should I do if the clutch suddenly fails?

If your car’s clutch suddenly fails while you’re driving, you should:

  1. Stop the car as soon as you can in as safe a place as possible.
  2. Turn your hazard lights on and switch off the engine.
  3. Contact us to report your breakdown.

How to fix a clutch

You’ll need to take your vehicle to a garage to get your clutch fixed. You should note down any clutch failure symptoms you’ve noticed to inform the mechanic.

How long does it take to fix a clutch?

How long it takes to fix the clutch will depend on the problem and the vehicle – you should speak to your garage to find out how much time they estimate it will take to fix.

How much does it cost to fix a clutch?

The cost to replace a clutch can vary depending on the garage and vehicle make. Generally, you can expect to pay upwards of £300 for parts and labour.

What should I do if there are problems with a clutch after it’s been replaced?

If you have problems after the clutch has been replaced, take it back to the garage who did the work so they can repair it.

Let us take care of any clutch problems.

How long do clutches last?

Clutches generally last up to 80,000 miles or so, but they can wear out more quickly depending on how you drive your car.

Do pilots do blood tests?

There are some ways you can help your clutch last longer.

1. Take your foot completely off the clutch pedal between gear changes and whenever you don’t need to press it.

“Riding” the clutch is the most common reason for premature clutch failure. Even the slightest pressure on the pedal will partially disengage the clutch, causing the release bearing, pressure plate and flywheel to overheat.

2. Put the gearbox in neutral when stationary and release the clutch pedal.

This engages the clutch and releases all the pressure on the components. Always make sure the handbrake is on when the car is stationary and not in gear.

3. Avoid “holding” the car on hills and slopes with the clutch.

This will quickly wear out the friction plate, as it’s effectively slipping the clutch in order to keep the car stationary. Press the clutch and brake together to stop the car, and apply the handbrake.

4. Accelerate and decelerate smoothly, changing gears as appropriate to help you do this.

The goal should be to get your foot off the clutch as quickly as possible so as not to cause slippage and unnecessary wear.

You should also perform basic car checks and get your car serviced regularly so an expert can spot any warning signs or problems with the vehicle that may cause the clutch to wear out.

Do automatic cars have a clutch?

Automatic cars don’t have a clutch pedal, although they do have internal clutch packs and a torque converter. They also usually have a simplified gear selection system.

While manual cars have a gear stick and normally at least 5 gears to choose from, automatic vehicles usually have a shifter which only lets you choose between forward and reverse gears, as well as neutral and park.

Some have a “manual” mode, which allows the driver to decide when the car changes gear, often via paddles either side of the steering wheel.

Generally, the gearbox chooses the right gear for the car’s speed without the driver having to do anything. The torque converter allows the car to come to a complete stop while still in gear.

Do electric cars have a clutch?

They usually only have 1 reduction gear as electric motors are able to produce high levels of torque from a standstill and go on to achieve much higher revs than an ICE.

7 habits that can damage the clutch of our car

7 habits that can damage the clutch of our car

While it is true that everyone drives their car in a different way, some of these ways are not always the most appropriate.

We leave home to go to work by car and we always follow the same route. This means that driving to work has become an everyday part of our daily lives. We are so used to it that we do not even notice the gear changes, braking or starting we make. In some cases these journeys are faster, because there may be little traffic, or slower, because we are on the road at rush hour.

As drivers we must not lose our way when driving our car, as it is vitally important to pay attention to the road and to bear in mind that in some cases we can damage parts of our vehicle’s system without realising it.

One of the parts that suffers the most due to our driving is the clutch . That is why from Frenkit , we explain to you which are the most common habits that can damage the clutch of our vehicle and that unconsciously, we always do. And, we will answer the question of: why is my clutch not working?

Nueva llamada a la acción

How our car’s clutch works

In previous posts we have already discussed what the clutch consists of : The clutch allows the correct transmission of power from the engine to the gearbox, which finally passes to the wheels of the car.

Before starting the vehicle, the following should be taken into account: with the gear lever in neutral, turn the ignition key. At this point, the engine starts and the vehicle remains running without starting.

But, why does this happen? Well, this happens because the engine power is not transmitted to the transmission system because we have not engaged any gear that transmits that power, i.e., even if we accelerate, the vehicle does not move. Something similar happens in the disengagement position , when the gear is engaged and the clutch pedal is depressed. In this case, it is the clutch that is not transmitting power to the transmission system.

Now it is time to engage the first gear of the gearbox. At this point, the clutch connects the gearbox to the engine. This is when we call the clutch engagement process , which consists of releasing the clutch pedal and complete engagement takes place. But what does this mean? It means that both the gearbox and the engine of the car are connected, which turns the wheels according to the gear.

Why is Porsche pronounced?

7 habits that damage the clutch of your car

Clutch wear is often caused not only by continuous use, but also by misuse of the clutch pedal when driving.

That is why we wanted to bring you this post, in which we discuss why the clutch is damaged and what the bad driving habits clutch are:

Driving with your foot on the clutch pedal

It is important to remember that we should only keep the pedal depressed when changing gears, braking or starting. Many drivers are in the habit of leaving their foot on the clutch pedal, causing continuous wear.

Although we may think that we do not exert enough pressure when our foot is on the pedal, we are wrong. By keeping the foot on the pedal, we exert pressure which is transmitted to the clutch, thus causing a separation between the flywheel and the friction disc and causing the friction disc to gradually wear out.

We therefore urge you to place your foot on the side of the clutch pedal, in the space known as the footrest. This avoids having to press the clutch pedal unconsciously.

Depressing the clutch pedal while in neutral

We may think that having the clutch pedal depressed with the gear engaged does not wear out the mechanism of our car, as the disc is free, it does not rub against any other part. However, although this is true, the diaphragm springs of the pressure plate gradually lose tension. This is because, by stretching the clutch control cable, we end up wearing out the thrust bearing. So do not make this mistake. When you are going to be stationary with your car for a few seconds, put it in neutral and release the clutch pedal.

Not depressing the clutch all the way when changing gears

Depressing the clutch when it should not be used is just as damaging to our car’s system as not using it correctly when it should be used.

If , as drivers, we do not press the clutch pedal ‘all the way down’ we are not disengaging the system completely, thus causing friction between the clutch elements and unnecessary wear.

7 habits that can damage the clutch of our car 1

Not being careful when washing the car

Can driving through water damage your car? It sounds unbelievable, but it is absolutely true. When we wash our car, we tend to spray pressurised water on the system underneath it. While it is true that most of the car’s exterior components can get wet, it is better to avoid sparing water on the systems inside the car, such as the clutch system.

Using the clutch when on an incline

If we are on a slope and we are using the clutch, it will eventually wear out and therefore affect the life of our vehicle. It is best to use the handbrake when on a gradient . Although this action tends to be used more by novice drivers, many expert drivers do this habit in order to get the hang of the clutch without the car rolling backwards. Thanks to it, we will be safer and will not burn the clutch system as much.

Over-accelerating when changing gear

Many drivers do not fully release the accelerator pedal when depressing the clutch when shifting gears; or they depress the accelerator pedal too hard while slowly releasing the pedal.

If the friction disc slips excessively, the friction disc heats up and wears unnecessarily . It is a component that rotates at the same time as the transmission. So if the wheels turn slowly (or hardly at all), but the engine turns very fast, the difference in speed is being absorbed by the clutch disc.

This error tends to be very common in nocive drivers and older people. In the former, as they are inexperienced and nervous at the wheel, they are not used to playing with the clutch pedal and the accelerator. As for the latter, as they lose strength in their leds and their hearing is worse, they do not realise that the engine is revving.

Overloading the vehicle

We must not overload the vehicle beyond its maximum permissible load, as the heavier the load on the car, the more the clutch system, tyres or suspension can be seriously damaged.

All the components of our vehicle have a working range set by the manufacturer. If this maximum is exceeded, the components may be damaged, which means that they will not respond adequately to our driving.
